Tutorial 1: Basic usage of AlignDG on simulated data
import necessary packages
[ ]:
import warnings
warnings.filterwarnings('ignore')
import anndata as ad
import scanpy as sc
import pandas as pd
import os
import numpy as np
from scipy import sparse
import torch
import aligndg
# set seed as 42
aligndg.set_global_seed(42)
device = torch.device('cuda:0' if torch.cuda.is_available() else 'cpu')
sc.set_figure_params(scanpy=True, dpi=80, dpi_save=600, frameon=True, vector_friendly=True, color_map=None, format='pdf', facecolor=None, transparent=True, ipython_format='png2x')
[2]:
# get cuda version (oue device is 12, some new device may be 13)
! nvcc -V
nvcc: NVIDIA (R) Cuda compiler driver
Copyright (c) 2005-2023 NVIDIA Corporation
Built on Mon_Apr__3_17:16:06_PDT_2023
Cuda compilation tools, release 12.1, V12.1.105
Build cuda_12.1.r12.1/compiler.32688072_0
Check jax device on cuda or cpu. If you hava cuda device and result is cpu, please consider: pip install –upgrade “jax[cuda12]”. (cuda version can be 12 or 13)
[3]:
import jax
jax.default_backend(), device
[3]:
('gpu', device(type='cuda', index=0))
Load Data
[10]:
from aligndg.utils import graph_construction
adata = sc.read_h5ad('data/Simulation/simulate1.h5ad')

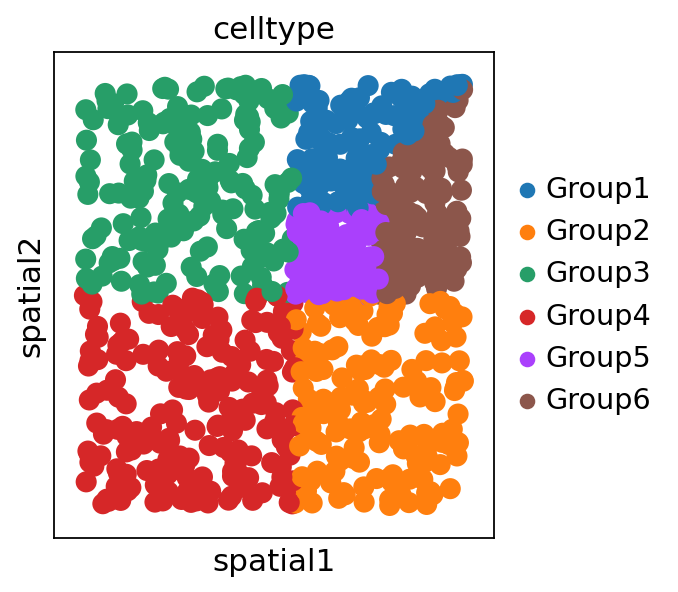

sc.pl.spatial(adata, color=['celltype'], spot_size=0.5)
adata_sub1 = adata[adata.obs['batch'] == 'Batch1']
adata_sub2 = adata[adata.obs['batch'] == 'Batch2']
adj_list = []
section_ids = ['Batch1', 'Batch2']
adata_list = [adata_sub1, adata_sub2]
for i in range(len(adata_list)):
adata_list[i].X = sparse.csc_matrix(adata_list[i].X)
adata_list[i].var_names_make_unique(join="++")
adata_list[i].obs_names = [x + '_' + section_ids[i] for x in adata_list[i].obs_names]
graph_construction.cal_spatial_network(adata_list[i], model='KNN', k_cutoff=4)
adj_list.append(adata_list[i].uns['adj'])
Calculating spatial neighbor graph ...
The graph contains 2368 edges, 500 cells
4.736 neighbors per cell on average
Calculating spatial neighbor graph ...
The graph contains 2396 edges, 500 cells
4.792 neighbors per cell on average
[11]:
adata1_harm_df = pd.DataFrame({
'index': range(adata_sub1.shape[0]),
'x': adata_sub1.obsm['spatial'][:, 0],
'y': adata_sub1.obsm['spatial'][:, 1],
'domain': adata_sub1.obs['celltype'].astype('category'),
})
adata2_harm_df = pd.DataFrame({
'index': range(adata_sub2.shape[0]),
'x': adata_sub2.obsm['spatial'][:, 0],
'y': adata_sub2.obsm['spatial'][:, 1],
'domain': adata_sub2.obs['celltype'].astype('category'),
})
adata1_harm_df, adata2_harm_df
[11]:
( index x y domain
Cell1_Batch1 0 1.037015 0.727646 Group3
Cell2_Batch1 1 7.301914 9.436571 Group2
Cell3_Batch1 2 5.493741 5.021805 Group2
Cell4_Batch1 3 6.041019 9.825238 Group2
Cell5_Batch1 4 6.947731 4.347541 Group5
... ... ... ... ...
Cell496_Batch1 495 0.048206 9.434689 Group4
Cell497_Batch1 496 7.969817 7.419835 Group2
Cell498_Batch1 497 3.112033 2.076640 Group3
Cell499_Batch1 498 7.234705 9.352265 Group2
Cell500_Batch1 499 5.126478 8.129682 Group2
[500 rows x 4 columns],
index x y domain
Cell501_Batch2 0 7.181161 5.700499 Group2
Cell502_Batch2 1 7.951904 0.702857 Group1
Cell503_Batch2 2 5.376372 0.877961 Group1
Cell504_Batch2 3 0.054656 1.326532 Group3
Cell505_Batch2 4 6.388294 8.878522 Group2
... ... ... ... ...
Cell996_Batch2 495 0.426510 4.551456 Group3
Cell997_Batch2 496 6.570264 2.578510 Group1
Cell998_Batch2 497 3.063378 5.954876 Group4
Cell999_Batch2 498 6.138880 3.644416 Group5
Cell1000_Batch2 499 0.808772 0.958538 Group3
[500 rows x 4 columns])
[12]:
from scipy.sparse import block_diag
adata_concat = ad.concat(adata_list, label='slice_name', keys=section_ids)
adj_concat = block_diag(adj_list)
adata_concat.uns['edge_list'] = np.nonzero(adj_concat)
adata_concat
[12]:
AnnData object with n_obs × n_vars = 1000 × 500
obs: 'celltype', 'batch', 'slice_name', 'batch_name'
uns: 'edge_list'
obsm: 'spatial'
Perform AlignDG
[16]:
from aligndg.graph import AlignDG
adata_concat, pis = AlignDG.train_AlignDG(adata=adata_concat, beta=0.5, iter_comb=[(0, 1)])
100%|██████████| 500/500 [00:03<00:00, 144.47it/s]
0%| | 0/500 [00:00<?, ?it/s]
Update spot triplet at epoch 500
Processing datasets ('Batch1', 'Batch2')
Solver may not converge.
# Epoch 599, loss: 0.632, gene_recon: 0.586, triplet loss: 0.04584432393312454: 20%|█▉ | 98/500 [00:08<00:07, 55.81it/s]
Update spot triplet at epoch 600
Processing datasets ('Batch1', 'Batch2')
# Epoch 608, loss: 0.795, gene_recon: 0.640, triplet loss: 0.15412934124469757: 21%|██ | 106/500 [00:13<01:06, 5.90it/s]
Solver may not converge.
# Epoch 699, loss: 0.734, gene_recon: 0.712, triplet loss: 0.02233678475022316: 40%|████ | 200/500 [00:14<00:04, 70.11it/s]
Update spot triplet at epoch 700
Processing datasets ('Batch1', 'Batch2')
# Epoch 709, loss: 0.708, gene_recon: 0.600, triplet loss: 0.10783737897872925: 42%|████▏ | 209/500 [00:18<00:43, 6.70it/s]
Solver may not converge.
# Epoch 799, loss: 0.518, gene_recon: 0.482, triplet loss: 0.036520037800073624: 60%|█████▉ | 299/500 [00:19<00:03, 60.66it/s]
Update spot triplet at epoch 800
Processing datasets ('Batch1', 'Batch2')
# Epoch 807, loss: 0.606, gene_recon: 0.498, triplet loss: 0.10765905678272247: 61%|██████ | 306/500 [00:23<00:35, 5.51it/s]
Solver may not converge.
# Epoch 899, loss: 0.480, gene_recon: 0.455, triplet loss: 0.024372799322009087: 79%|███████▉ | 395/500 [00:25<00:01, 59.87it/s]
Update spot triplet at epoch 900
Processing datasets ('Batch1', 'Batch2')
# Epoch 908, loss: 0.644, gene_recon: 0.522, triplet loss: 0.12167825549840927: 80%|████████ | 402/500 [00:29<00:20, 4.87it/s]
Solver may not converge.
# Epoch 999, loss: 0.446, gene_recon: 0.426, triplet loss: 0.020836396142840385: 100%|██████████| 500/500 [00:31<00:00, 15.99it/s]
[17]:
# calculate mapping acc
mapping_pi = pis[0]
count = 0
ref_raw_list = []
index = []
for i in range(mapping_pi.shape[0]):
if np.sum(mapping_pi[i] > 0):
index.append(i)
source_domain = adata_sub1.obs['celltype'][i]
max_align = mapping_pi[i].argsort()[-1]
target_domain = adata_sub2.obs['celltype'].values[max_align]
ref_raw_list.append(max_align)
if source_domain == target_domain:
count = count + 1
print(count / len(ref_raw_list), count, len(ref_raw_list))
0.962 481 500

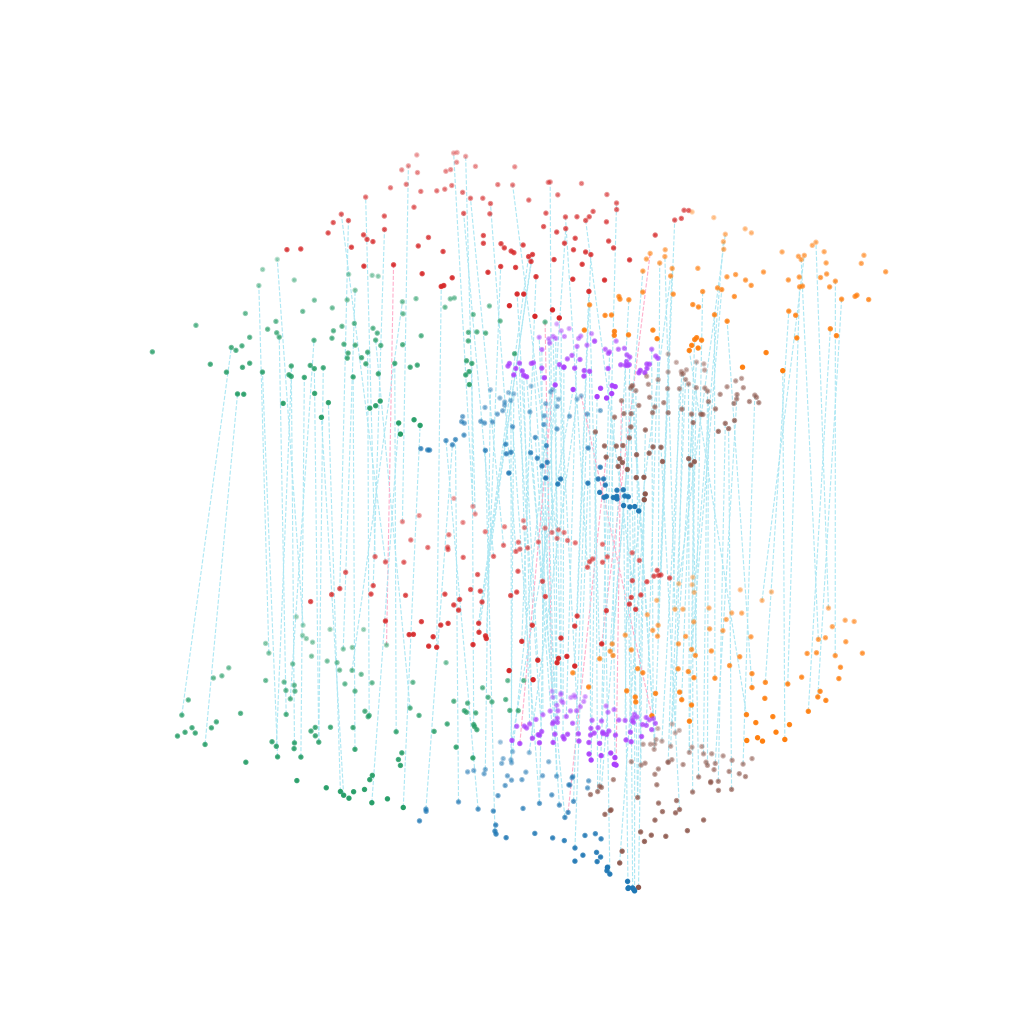

Visualization mapping result
[18]:
from aligndg.utils.visualize import Build3D
index_harm = np.array(ref_raw_list)
matching_harm = np.array([index, index_harm])
multi_align = Build3D(adata2_harm_df, adata1_harm_df, matching_harm, meta='domain', scale_coordinate=True,subsample_size=150, exchange_xy=False)
multi_align.draw_3D(size=[8, 10], line_width=0.5, point_size=[2, 2], line_alpha=1, hide_axis=True, show_error=True)
dataset1: 6 cell types; dataset2: 6 cell types;
Total :6 celltypes; Overlap: 6 cell types
Not overlap :[[]]
Subsampled 150 pairs from 500
[ ]:
